Model	CHN-LCBU-DYHW-113
Shipping weight	1kg
Capacity range *	0~100kg
Accuracy	0.5%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±10%mV/V
Creep	±0.1%F.S/30min
Zero output	±2%F.S
Temperature effect on zero	±0.2%F.S/10℃
Temperature effect on output	±0.2%F.S/10℃
Operating temperature	-20℃~+80℃
Input impedance	500Ω
Output impedance	1000Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 5-10V
Material	Stainless steel
Protection class	IP66
Cable length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

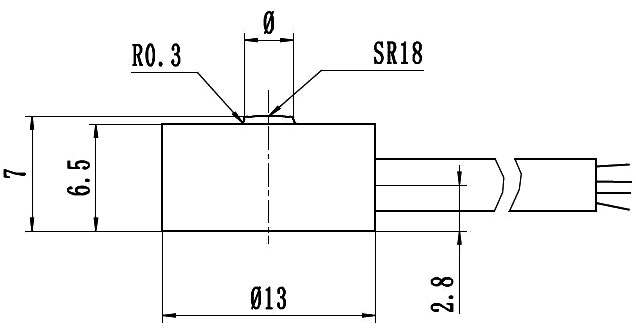

Capacity	Dimension (mm)
Capacity	Φ
5~20kg	2
30~100kg	3
