Model	CHN-LCBU-DYHW-120
Shipping weight	1.5kg
Capacity range *	5~1000kg
Accuracy	0.3%F.S (linearity + hysteresis + repeatability)
Sensitivity	2.0±10%mV/V
Creep	±0.03%F.S/30min
Zero output	±2%F.S
Temperature effect on zero	±0.1%F.S/10℃
Temperature effect on output	±0.1%F.S/10℃
Operating temperature	-20℃~+80℃
Input impedance	1000Ω
Output impedance	1000Ω
Insulation resistance	≥5000MΩ
Safety overload	150%F.S
Bridge voltage (excitation voltage)	DC 5-10V
Material	Stainless steel
Protection class	IP66
Cable length	2m
Wiring	EXC+: Red, EXC-: Black, SIG+: Green, SIG-: White

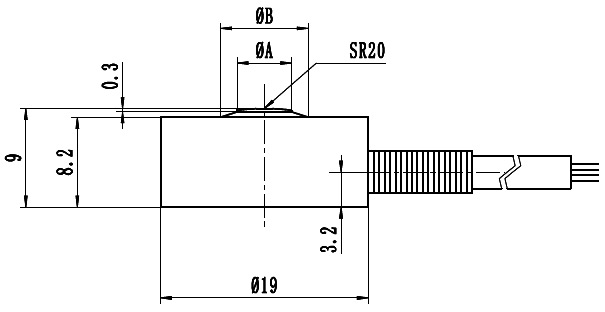

Capacity	Dimension (mm)
Capacity	A	B
5~20kg	1.5	/
30~100kg	2.5	/
200~300kg	5	/
500kg	5	7
1000kg	5	8
