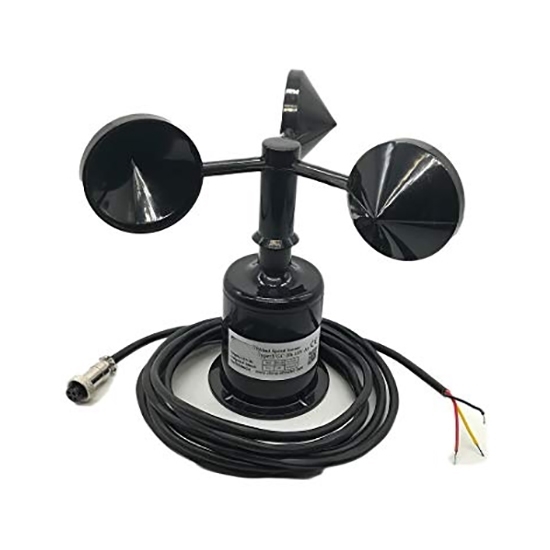

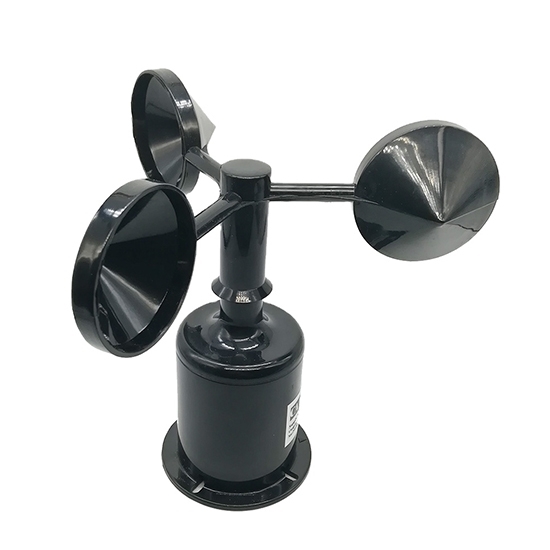

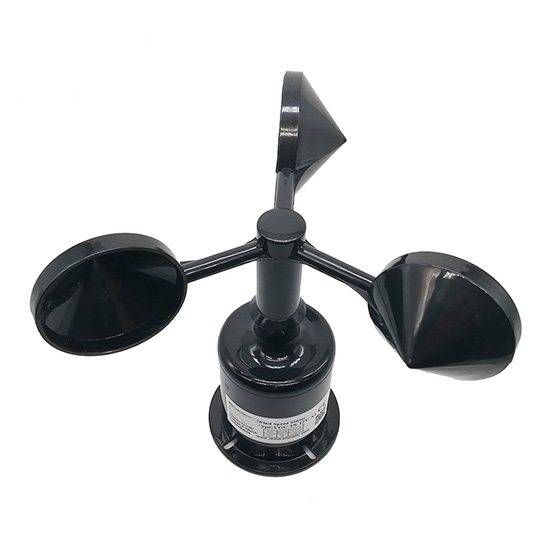

3-Cup Anemometer, 0~70 m/s Wind Speed, RS 485 Output

3-cup anemometer with 0-70 m/s wind speed measurement range. With relay function, the three-cup wind speed sensor can be directly based on wind speed value of other equipment for switching control. It can also output wind speed RS 485 signal, pulse and voltage signals. The air velocity gauge has wide applications in advertising barrier, weather station, ocean, environment, airport, port, laboratory, industry and agriculture and transportation, etc.

Specification

3-Cup Anemometer Wiring

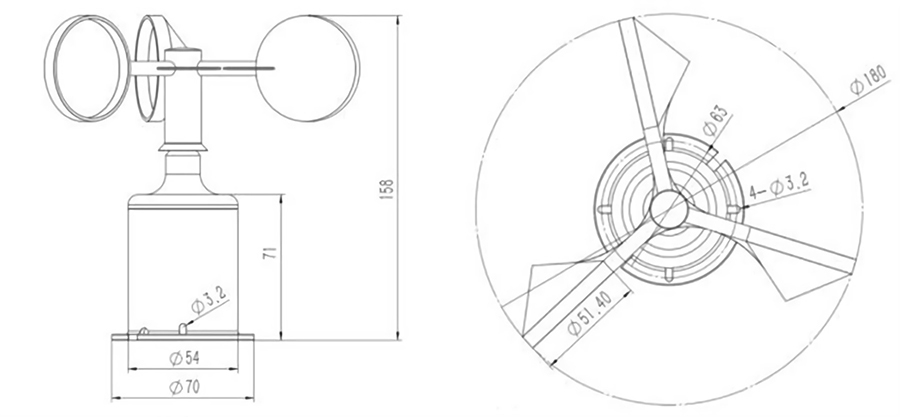

3-Cup Anemometer Dimension Diagram (Unit: mm)

Tips: Precautions for 0~45 m/s 3-cup anemometer installation.

• When the 3-cup anemometer is unpacked, it should be checked carefully for any signs of shipping damage.
• Proper placement of the wind speed sensor is very important. Eddies from trees, buildings, or other structures will greatly influence wind speed observations.
• To get meaningful data for most applications, locate the 3-cup anemometer well above or upwind from obstructions.
• For some applications, it may not be practical or necessary to meet these requirements.
• Flange mounted, fix four screws on the bracket and keep the wind speed sensor horizontal.
• Connector dimension: Ф15mm (recommended reserving Ф25mm for wiring).
