8 Port Full Gigabit Unmanaged Industrial Switch, Din Rail

High quality 8 Gigabit Ethernet ports Layer 2 Din-rail unmanaged industrial switch, adopts fanless thermal design and non-porous heat dissipation technology to make the switch durable, support indicator lights for states display.

Specification

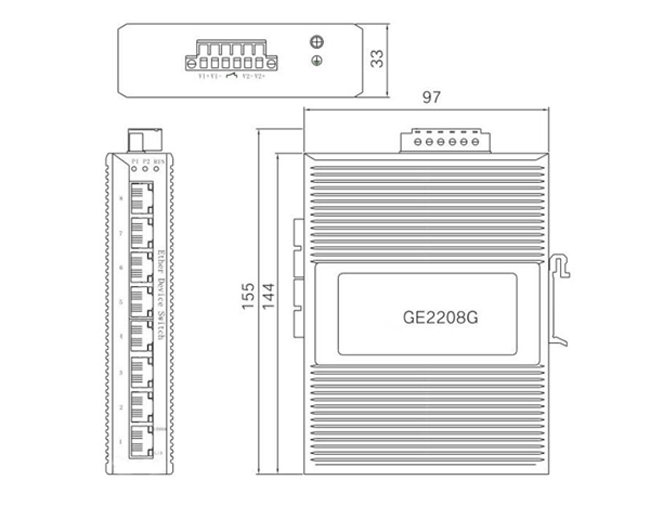

Dimensional Drawing (mm)

Tips: How Layer 2 industrial switches work?
The Layer 2 Ethernet switch works at Layer 2 (data link layer) of the OSI model, identifies the MAC address information in the packet, forwards it according to the MAC address, and records these MAC addresses and corresponding ports in an internal address table. Therefore, Layer 2 switches require powerful data identification and forwarding capabilities.
Working principle:
When the switch receives a packet from a port, it first reads the source MAC address in the packet header so that it knows which port the source MAC address machine is connected to. Then read the destination MAC address in the packet header and look up the corresponding port in the address table. If there is a port corresponding to the destination MAC address in the table, copy the packet directly to this port. If the corresponding port is not found in the table, the data packet is broadcast to all ports. When the destination machine responds to the source machine, the switch can learn which port the destination MAC address corresponds to, and the switch will not broadcast to all ports when the next time data is transferred.
