Model		CHN-NB8-632PC02

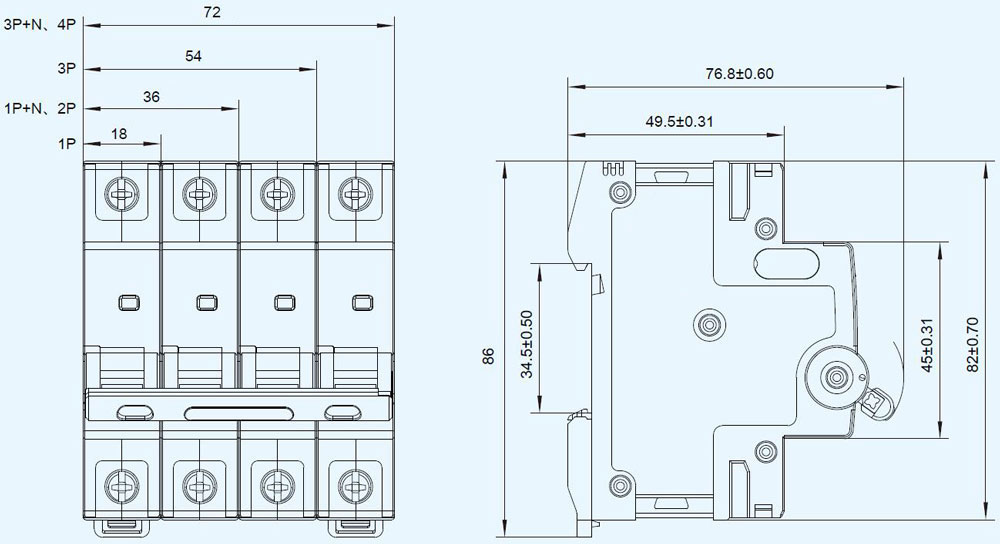

Electrical Parameters	Height	86 mm
	Width	18 mm per pole
	Mounting	DIN Rail
	Rated Current (In)	2A
	Number of poles	2P
	Rated Voltage (Ue)	230/400V
	Rated Insulation Voltage (Ui)	500V
	Dielectric Test Voltage	2000V
	Reted Frequency	50Hz
	Short Circuit Interrupting Capacity	6KA
	Trip Characteristic	C Curve (5-10In)
	Rated Short-Circuit Breaking Capacity	6000A
	Operating Short-Circuit Breaking Capacity	6000A
Mechanical Parameters	Electrical Life	10000 times
	Mechanical Life	20000 times
	Flame Retardant Grade	V0
	Protection Degree	Direct installation: IP20B Installed in the distribution box: IP40B
	Calibration Temperature	30℃
	Operating Temperature	-35℃~+70℃
	Storage Temperature	-35℃~+85℃
	Tightening Torque	2 N.m
	Max. Tolerable Torque	2.5 N.m
	Terminal Size Acceptability–Min/Max	1 mm²/ 25mm²
	Wire Insertion Depth	13mm
