50 amp 2 pole Miniature Circuit Breaker

Circuit Breaker Information

• Rated Current: 50 amp
• Rated Voltage: 230/400V AC
• Number of pole: 2 poles
• 6 kA short circuit breaking capacity
• Compliance with IEC standard, meeting the requirements for supplementary protector
• C curve trip characteristic for short circuit and overload protection for different applications
• Breakers mounted on standard 35 mm DIN rail

Technical Data

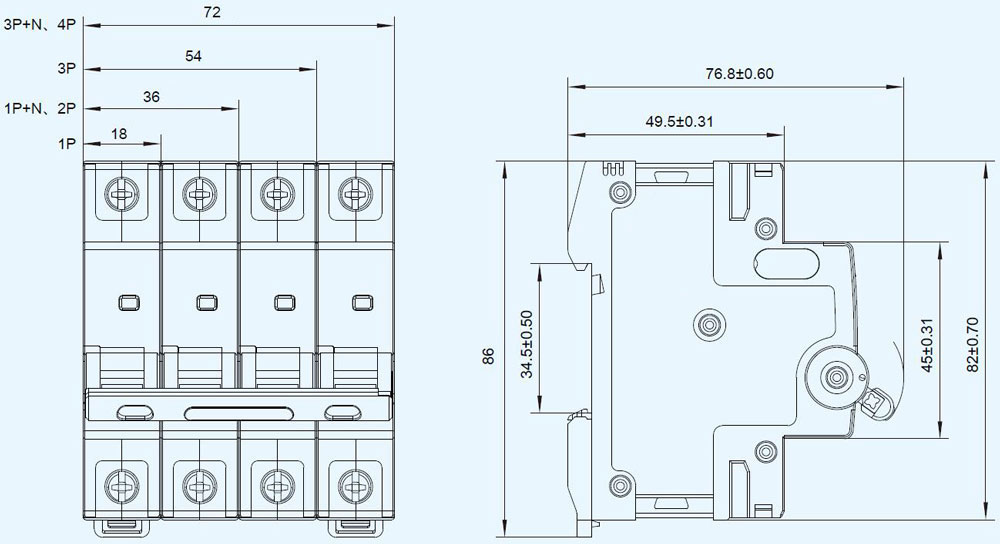

Circuit Breaker Dimensions (Unit: mm)

Tips: What are A, B, C and D tripping curves of the circuit breaker?
As to the miniature circuit breaker, there are a total of four kinds of magnetic tripping curve types. The tripping curve can be A/B/C/D:

1. A-model tripping curve
   The magnetic tripping current is (2-3)In. It is suitable to protect the semiconductor electronic circuit, measurement system with small-power power transformer or system with long circuit and low current.
2. B-model tripping curve
   The magnetic tripping current is (3-5)In. It is suitable to protect the power distribution system of the residents, household appliances and personal safety.
3. C-model tripping curve
   The magnetic tripping current is (5-10)In. It is suitable to protect the distributing line and the lighting line with a relatively high connecting circuit.
4. D-model tripping curve
   The magnetic tripping current is (10-20)In. It is suitable to protect the equipment with a relatively high impulse current, such as the transformer and solenoid valve and so on.
