Model		CHN-FS-MRDZ3
Basics	Material	Stainless Steel
	Float Pressure	0.7 MPa
	Applicable Temperature	-40 ~ +125 ℃
	Withstand Voltage	1000V/10S
	Terminal Tensile Strength	N/A
	The Contact Resistance	N/A
	Min Insulation resistance	100 mΩ

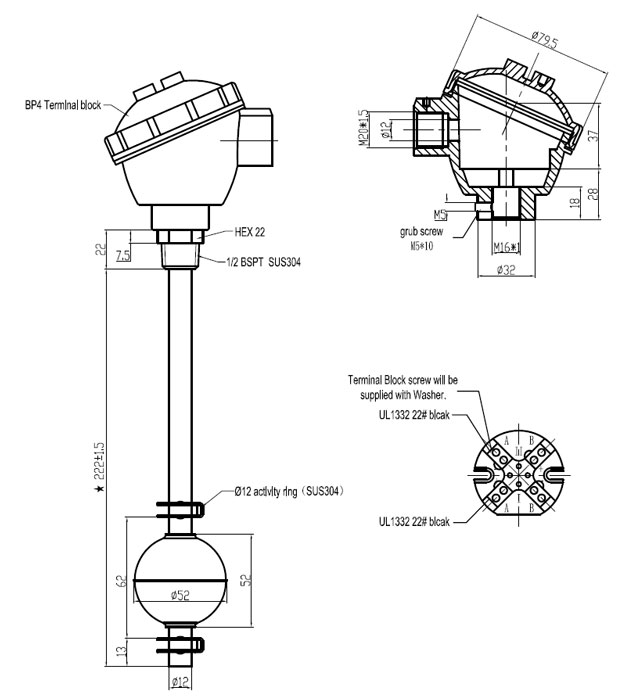

Parts	Float	φ28*28mm
	Float Ball	10125
	Grub Screw	M5*10mm
	E-ring	φ12mm Activity Ring
	Wire	Teflon 50mm
Reed Switch Technical Parameters	Contact Form (Optional)	SPST 1NO/ 1NC
	Contact Power Rating	50W
	Max Switching Voltage	DC350V/ AC300V
	Breakdown Voltage	600VDC
	Max Switching Current	DC0.7A/ AC0.5A
	Max Carry Current	2.5A
	Max Contact Resistance	100mΩ
	Min Insulation Resistance	10¹⁰Ω
	Get an electric shock life	10⁷ Times
