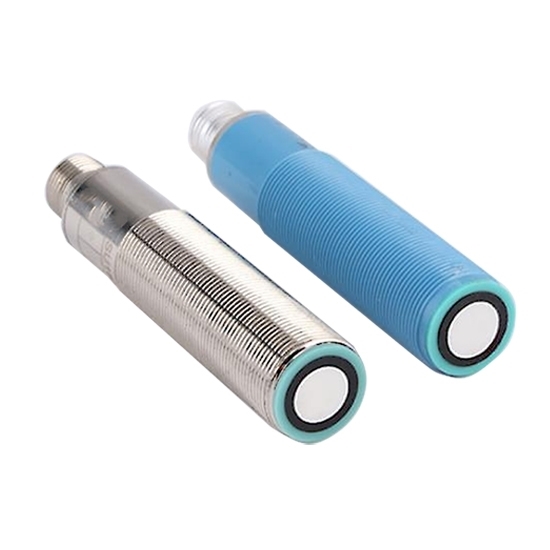

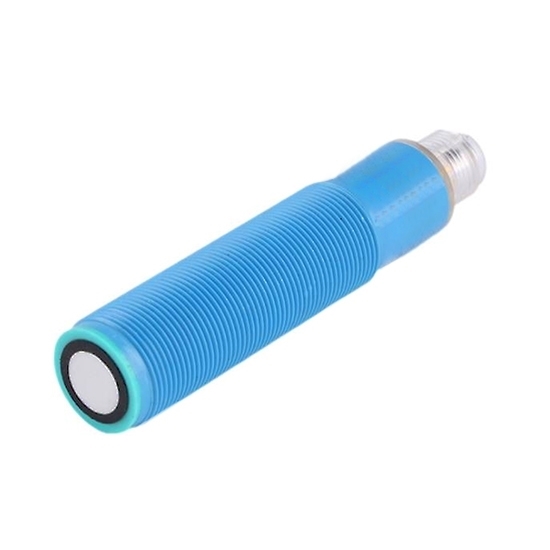

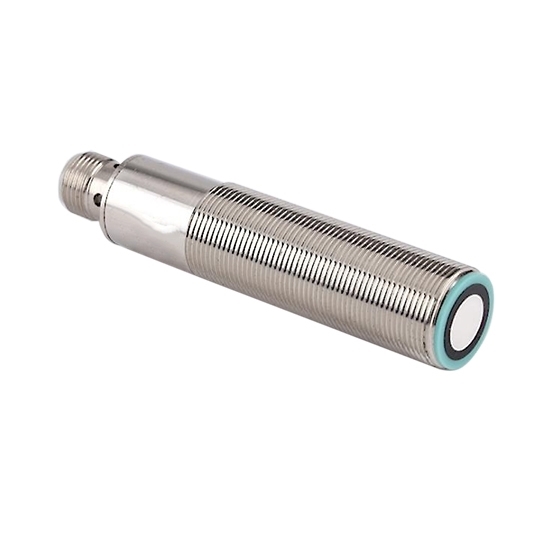

Ultrasonic Distance Sensor, 100-1000 mm

High power ultrasonic transducer (sensor) standard detector is 100×100mm. You can set the detection distance and output mode by setting the line remotely. IP67 for body, come with international standards, through CE certification.

Specification:

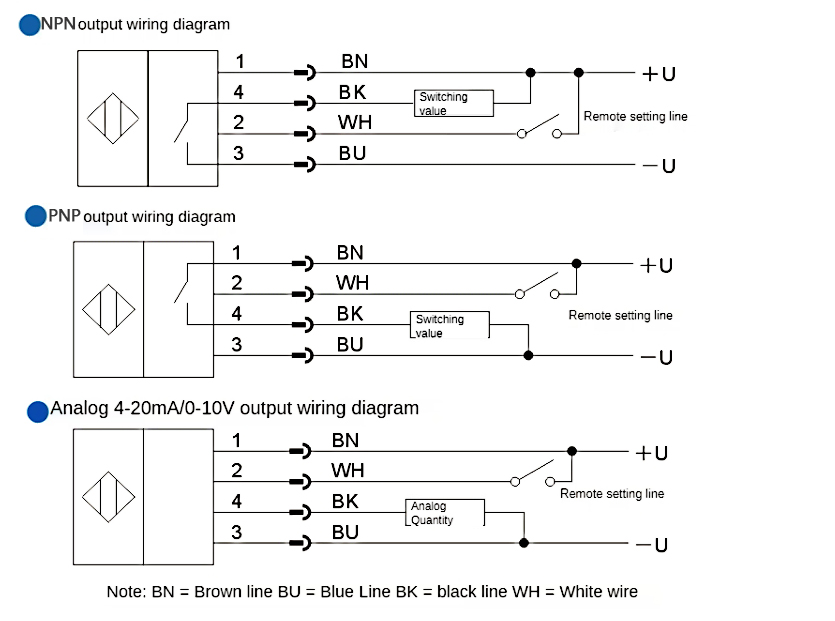

Wiring:

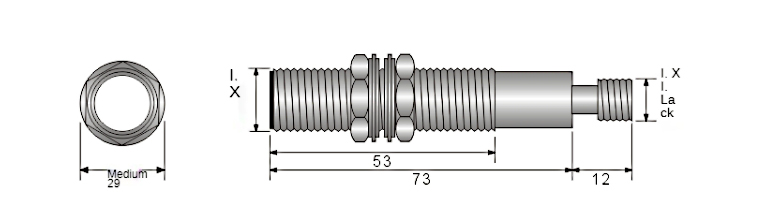

Dimension (mm):

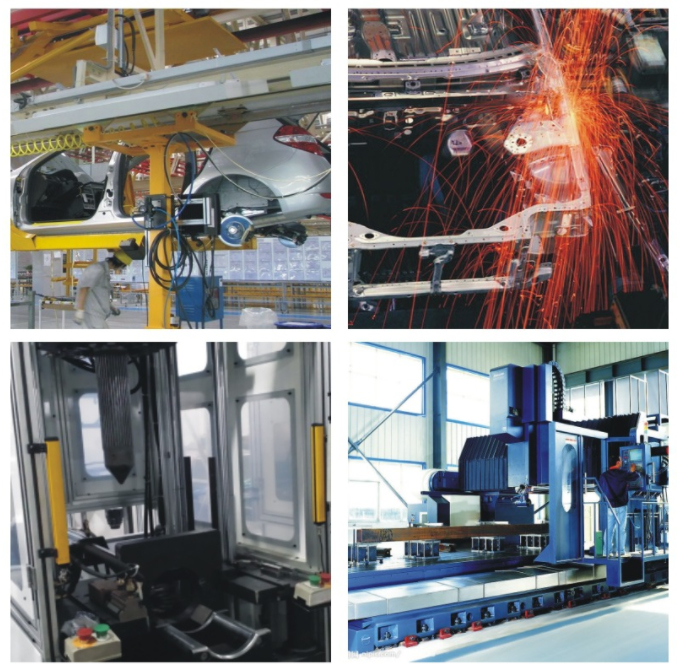

Application:

Tips: What is an Ultrasonic Sensor?

Ultrasonic sensor is the ultrasonic signal into other energy signals (usually electrical signals) sensor. Ultrasonic waves are mechanical waves with vibration frequencies higher than 20kHz. It has the characteristics of high frequency, short wavelength, small diffraction phenomenon, especially good directivity, can become a ray and directional propagation. Ultrasonic penetration of liquid, solid power is very large, especially in the sunlight opaque solid. When ultrasonic meets impurity or interface, it will produce significant reflection to form reflection echo. When it meets moving object, it can produce Doppler effect. Ultrasonic sensor is widely used in industry, national defense, biomedicine and other fields.
