Model		CHN-U4
Voltage		12V DC, 24V DC, 36V DC, 48V DC (Optional)
Max. Load		8000N
Max. Static Load		20000N
No-Load Speed		2.7mm/s
Full-Load Speed		1-1.5mm/s
Power		77W
Rated Speed		2600RPM
Stroke		50/ 100/ 150/ 200/ 250/ 300/ 350/ 400/ 450mm (Optional, can be customized)
Continuous Current		2.2-3.2A
Duty Cycle		10%
IP Grade		IP65
Ambient Temperature		-25℃ ~ +65℃
Position Feedback		Reed sensor
Noise		<60db
Front-Rear End Dimension		Rod type Φ16mm
Installation Dimension		Stroke + 350mm
Connector		Tinned leads
Length of Cable		1m
Weight		11kg
Applications		Small and medium sized solar tracker system

Code	Rated Load (N)		Rated Current (A)	Rated Speed (mm/s)
Code	Push	Pull	Rated Current (A)	No Load (32V DC)	Full Load (24V DC)
A	8000	8000	3.2	2.7	1
B	6000	6000	2.2	2.7	1.5

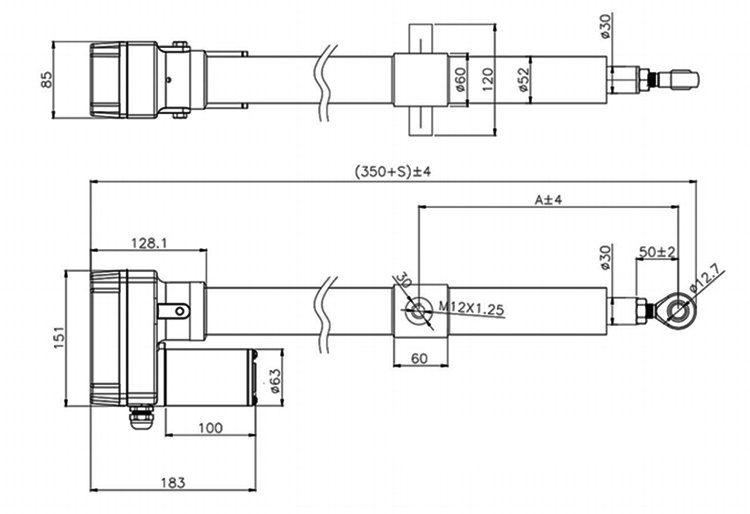

Stroke±2 (mm), Mounting Dimension±2 (mm)
Stroke	50	100	150	200	250	300	350	400	450
Size	400	450	500	550	600	650	700	750	800
